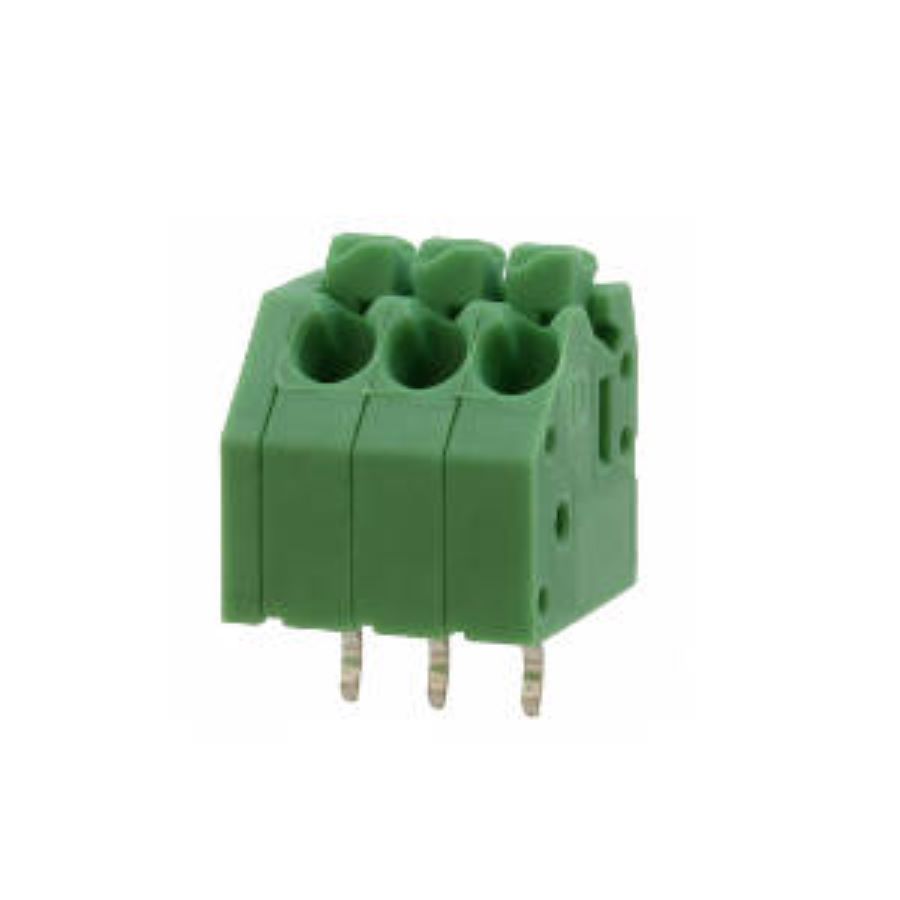

1984976
Manufacturer:
Phoenix Contact
Mfr.Part #:
1984976
Datasheet:
Description:
Terminal Blocks Through Hole 3 3.5 mm 8 A 250 V 20 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 16.7 mm |
| Termination | Screwless - Spring Cage, Tension Clamp |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 13.1 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 12 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 1.5 g |
| Pitch | 3.5 mm |
| Current | 2 A |
| Current Rating | 8 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL, VDE |
| Number of Circuits | 3 |
| Orientation | 45° (135°) Angle with Board |
| Max Supply Voltage | 250 V |
| Color | Green |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Green |
| Stripping Length | 8 mm |
| Connection Method | Push-In |
| Wire Gauge Range | 20 AWG to 16 AWG |
Stock: 1173
Distributors
pcbx
pcbxUnit Price$0.50691
Ext.Price$0.50691
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50691 | $0.50691 |
| 10 | $0.36603 | $3.66030 |
| 25 | $0.31885 | $7.97125 |
| 50 | $0.29995 | $14.99750 |
| 100 | $0.26942 | $26.94200 |
